8 tons hydraulic flat cars hydraulic winch

8 tons hydraulic flat cars hydraulic winch

we are hydraulic winch manufacturer produce the product according to our customer's requirement.

the max kn of the swivel cargo hook (shackle hook) can be available from 1 ton to 60 tons

the listing price is for the max kn of the swivel cargo hook(shackle hook)  which is 7 tons

the dimension of the swivel cargo hook(shackle hook)is 16x27 meters or 16x35 meters optional

optional power

power source by hydraulic

optional voltage

rope material:stainless steel

OEM and ODM service provided

Hainan Daixin is a hydraulic winch manufacturer and distributor from China. It designs, manufactures and distributes 1 ton to 60 tons hydraulic winches to suit most rescue situation applications. For example, towing and lifting, rescue and road clearing, etc. The winch is available in upright and flat versions, which are easy to operate and can be pulled in both directions, improving adaptability and ease of maintenance. Provides fast winch output, limiting time in hazardous areas, reducing component wear and increasing work efficiency and productivity.

Product description:

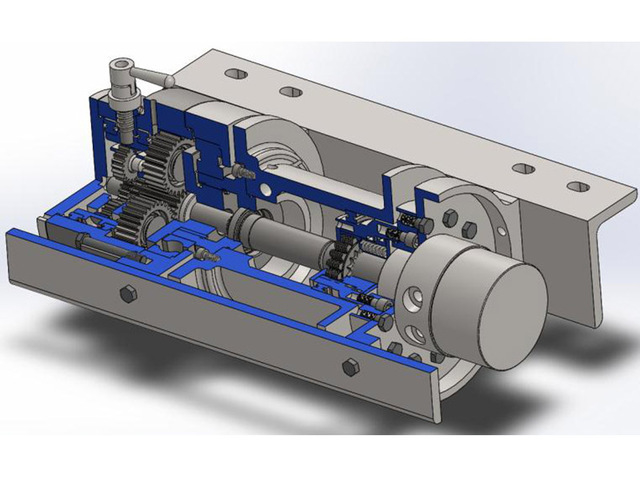

Hydraulic winch is mainly composed of hydraulic motor (low speed or high speed motor), brake, gear box, drum, support shaft, frame, rope device (optional), etc.

Our whiches can be widely used in all kinds of lifting equipment, such as railway locomotive and truck crane, ship, oil field drilling, coal mine, port, small engineering machinery and so on.

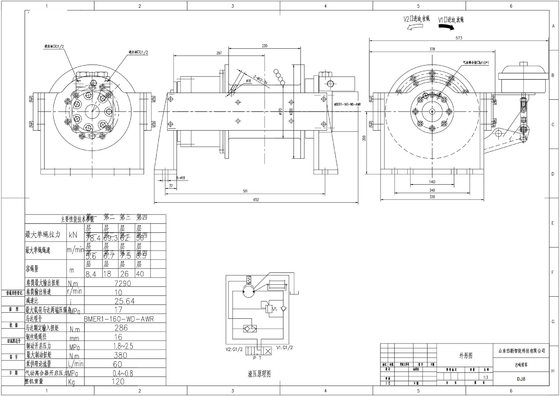

Parameters for the Hydraulic winch
Line pull capacity it depends we can customize it from 1 ton to 60 tons as per your requirement)
Pulling force (1st layer) 78.4 KN (subject to the line pull capacity)
Line speed (1st layer) 8.2 m/min (it depends on customization)
Drum output torque 8545 Nm (it depends on customization)
Wire rope capacity 40 m (it depends on customization)
Wire rope diameter 16 mm (it depends on customization)
Winch length 675 mm (it depends on customization)
Winch width 410 mm (it depends on customization)
Winch height 375 mm (it depends on customization)
Winch weight 160 kg (without rope) (it depends on customization)
Hydraulic motor BMER 200 (it depends on customization)
Clutch Pneumatic (fast release rope)
Rope tensioner Spring or pneumatic
Application pulling works for wrecker, recovery truck, tow truck, self loader platform, forestry, etc
OEM and ODM order are Acceptable.Welcome to inquiry from us,thank you!
